Emagram Analysis vs Temperature

TEMP GND
C
THRML TOP
m
CLD BASE
m
AVAIL ALT
m
DRCT
deg
SKNT
knot
TEMP AIR
C
---------------------------------------------------------------------------------
17 0 0 0 - - -
18 0 0 0 - - -
19 0 0 0 - - -
20 0 0 0 - - -
21 0 0 0 - - -
22 0 0 0 - - -
23 0 0 0 - - -
24 0 113 0 - - -
25 0 238 0 - - -
26 0 363 0 - - -
27 0 488 0 - - -
28 0 613 0 - - -
29 86 738 86 170 4 28.2
30 330 863 330 240 19 23.8
31 607 988 607 240 19 23.8
---------------------------------------------------------------------------------

Forecast Information 2025/09/18 tottori,tottori

MaxTemp : 27.35
DewPoint : 23.1

Emagram Analysis vs Time

Time
C
TEMP
GND
m
Dew
Point
C
Thermal Top
m
CLD BASE
m
AVAIL
ALT
m
CLD
%
Wind
deg
Wind
m/s
CLD BASE LCL
m
----------------------------------------------------------------------------------------------------------------------
10:00 27.24 26.01 0 488 0 99 360 4.56 154
11:00 27.05 25.82 0 488 0 99 346 3.21 154
12:00 26.58 25.17 0 488 0 99 4 1.92 176
13:00 26.45 25.04 0 363 0 100 3 3.27 176
14:00 26.12 24.53 0 363 0 100 15 3.82 199
15:00 24.99 21.01 0 238 0 100 14 5.03 498
16:00 24.26 20.33 0 113 0 100 16 5.12 491
17:00 23.84 19.91 0 113 0 100 19 4.16 491
18:00 24.3 19.63 0 113 0 100 22 3.5 584
19:00 24.4 19.37 0 113 0 100 30 2.92 629
----------------------------------------------------------------------------------------------------------------------

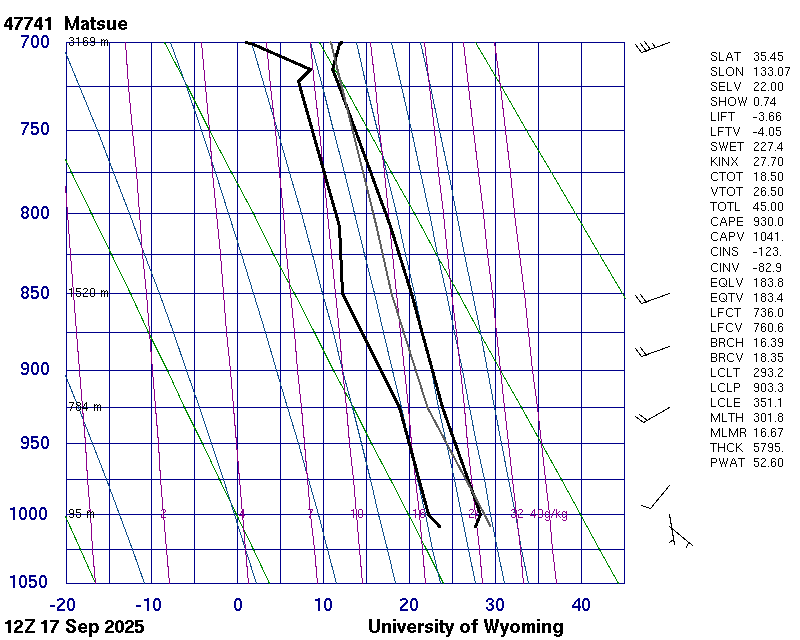

Emagram GIF Data 2025091712 Matsue

Emagram Source Data 2025091712 Matsue

-----------------------------------------------------------------------------
   PRES   HGHT   TEMP   DWPT   RELH   MIXR   DRCT   SKNT   THTA   THTE   THTV
    hPa     m      C      C      %    g/kg    deg   knot     K      K      K
-----------------------------------------------------------------------------
 1008.0     22   27.6   23.4     78  18.36    130      3  300.1  354.1  303.4
 1006.0     40   27.8   23.1     76  18.06    150      2  300.4  353.6  303.6
 1000.0     95   28.2   22.2     70  17.17    170      4  301.4  352.1  304.4
  979.0    283   27.0   21.3     71  16.56    220     10  302.0  351.1  305.0
  925.0    784   23.8   18.8     74  15.00    240     19  303.6  348.4  306.4
  884.0   1179   21.9   15.3     66  12.49    250     19  305.6  343.3  307.9
  850.0   1520   20.2   12.2     60  10.61    250     21  307.3  339.6  309.2
  808.0   1956   17.8   11.8     68  10.87    250     25  309.2  342.6  311.2
  722.0   2910   11.6    7.0     73   8.78    250     33  312.5  340.0  314.2
  715.0   2992   11.0    8.4     84   9.77    250     33  312.7  343.2  314.6
  701.0   3157   11.8    1.8     50   6.26    250     35  315.4  335.4  316.6
  700.0   3169   12.0    1.0     47   5.91    250     35  315.7  334.8  316.9
  612.0   4274    4.1   -4.5     53   4.50    245     37  319.1  333.9  319.9
  590.0   4575    2.0   -6.0     55   4.16    246     37  319.9  333.8  320.7
  526.0   5491   -3.9   -6.6     81   4.46    249     39  323.5  338.5  324.4
  500.0   5890   -6.3   -8.6     84   4.02    250     39  325.3  338.9  326.1
  490.0   6048   -6.5  -10.5     73   3.53    249     41  326.9  339.1  327.6
  483.0   6160   -6.7  -11.7     68   3.25    248     42  328.0  339.3  328.7
  455.0   6620  -10.0  -13.1     78   3.09    245     47  329.6  340.4  330.2
  433.0   7001  -12.7  -14.2     89   2.96    245     44  330.8  341.2  331.4
  411.0   7396  -15.7  -16.6     93   2.56    245     41  331.9  341.0  332.4
  400.0   7600  -16.1  -17.9     86   2.35    245     39  334.0  342.4  334.4
  393.0   7733  -16.7  -19.7     77   2.05    245     39  334.9  342.4  335.4
  390.0   7791  -16.9  -20.5     74   1.93    244     39  335.4  342.4  335.8
  372.0   8145  -18.7  -28.7     41   0.97    241     39  337.5  341.2  337.7
  358.0   8430  -20.9  -27.9     53   1.08    238     40  338.3  342.4  338.5
  356.0   8471  -21.1  -32.1     37   0.73    238     40  338.6  341.4  338.7
  341.0   8788  -23.9  -35.9     32   0.53    234     40  338.9  341.1  339.1
  322.0   9204  -27.7  -29.6     84   1.03    230     40  339.3  343.2  339.5
  315.0   9362  -28.9  -29.6     94   1.05    229     41  339.8  343.8  340.0
  310.0   9476  -29.3  -32.7     72   0.79    227     41  340.8  343.9  340.9
  300.0   9710  -30.9  -34.2     73   0.71    225     41  341.7  344.5  341.9
  296.0   9805  -31.6  -35.6     67   0.62    230     39  342.1  344.6  342.2
  293.0   9876  -32.1  -36.7     64   0.57    230     39  342.3  344.6  342.4
  281.0  10169  -34.5  -35.9     87   0.64    230     38  343.0  345.5  343.1
  270.0  10445  -36.7  -39.7     74   0.45    230     37  343.7  345.6  343.8
  255.0  10836  -40.1  -43.3     71   0.33    230     35  344.4  345.7  344.4
  250.0  10970  -41.1                         230     35  344.8         344.8
  210.0  12133  -50.3                         226     26  348.1         348.1
  204.0  12321  -51.7                         225     25  348.7         348.7
  200.0  12450  -52.7                         220     27  349.1         349.1
  171.0  13430  -60.6                         225     27  352.0         352.0
  161.0  13807  -63.7                         195     31  352.9         352.9
  150.0  14250  -67.3                         195     37  354.0         354.0
  149.0  14290  -67.5                         196     37  354.3         354.3
  142.0  14579  -67.8                         205     35  358.8         358.8
  136.0  14837  -68.0                         210     45  362.8         362.8
  123.0  15440  -68.5                         230     40  372.4         372.4
  111.0  16046  -73.3                         250     35  374.6         374.6
  110.0  16099  -73.7                         255     33  374.7         374.7
  105.0  16373  -71.8                         245     23  383.3         383.3
  100.0  16660  -69.9                         245     29  392.4         392.4
   97.0  16841  -70.4                         255     33  394.8         394.8
   95.6  16928  -70.7                         257     32  395.9         395.9
   88.0  17419  -71.3                         270     25  404.2         404.2
   84.0  17695  -71.6                         260     19  408.9         408.9
   81.1  17903  -71.9                         235     17  412.5         412.5
   80.0  17984  -71.6                         225     16  414.8         414.8
   77.0  18212  -70.7                         215     21  421.2         421.2
   74.0  18449  -69.8                         260     10  427.9         427.9
   71.0  18695  -68.8                         190      4  435.0         435.0
   70.0  18780  -68.5                         195      6  437.5         437.5
   63.0  19419  -66.0                         225     19  456.4         456.4
   58.0  19921  -64.0                         205     10  471.8         471.8
   56.0  20133  -63.1                         195     16  478.5         478.5
   54.5  20298  -62.5                         231     14  483.7         483.7
   51.0  20708  -61.4                         320      8  495.5         495.5
   50.0  20830  -61.1                         270      6  499.1         499.1
   49.0  20957  -61.0                         250      6  502.1         502.1
   48.0  21086  -60.9                         285      8  505.3         505.3
   45.0  21490  -60.7                         310     12  515.3         515.3
   43.0  21775  -60.5                          55      6  522.5         522.5
   41.0  22073  -60.3                          10     10  530.1         530.1
   39.0  22386  -60.1                          95     14  538.2         538.2
   37.0  22716  -59.9                          95      4  546.9         546.9
   36.0  22888  -59.8                          10      6  551.5         551.5
   34.0  23246  -59.6                          25      8  561.2         561.2
   33.0  23433  -59.5                         320      6  566.3         566.3
   30.0  24030  -59.1                          45     12  582.9         582.9
   28.2  24420  -57.9                          85     14  596.7         596.7
   28.0  24466  -57.8                          90     14  598.3         598.3
   27.0  24700  -57.0                          80     14  606.7         606.7
   25.0  25195  -55.4                         120     10  624.8         624.8
   24.0  25457  -54.5                          70     14  634.6         634.6
   23.0  25731  -53.6                          80     14  645.0         645.0
   22.0  26017  -52.7                          70     12  656.0         656.0
   21.0  26316  -51.7                          35     12  667.7         667.7
   20.0  26630  -50.7                          70     12  680.2         680.2
   18.0  27319  -49.1                          90     12  705.9         705.9
   17.7  27429  -48.9                         105     11  710.1         710.1
   17.0  27693  -49.0                         140     10  718.1         718.1
   16.0  28091  -49.1                          60     16  730.4         730.4
   15.0  28514  -49.2                         130     17  743.6         743.6
   14.0  28966  -49.3                         115     21  758.0         758.0
   13.0  29452  -49.4                         140      8  773.9         773.9
   12.1  29922  -49.5                         104     12  789.5         789.5
   12.0                                       100     12

Station information and sounding indices

                             Station number: 47741
                           Observation time: 250917/1200
                           Station latitude: 35.45
                          Station longitude: 133.07
                          Station elevation: 22.0
                            Showalter index: 0.74
                               Lifted index: -3.66
    LIFT computed using virtual temperature: -4.05
                                SWEAT index: 227.40
                                    K index: 27.70
                         Cross totals index: 18.50
                      Vertical totals index: 26.50
                        Totals totals index: 45.00
      Convective Available Potential Energy: 930.00
             CAPE using virtual temperature: 1041.47
                      Convective Inhibition: -123.45
             CINS using virtual temperature: -82.97
                           Equilibrum Level: 183.89
 Equilibrum Level using virtual temperature: 183.42
                   Level of Free Convection: 736.00
             LFCT using virtual temperature: 760.62
                     Bulk Richardson Number: 16.39
          Bulk Richardson Number using CAPV: 18.35
  Temp [K] of the Lifted Condensation Level: 293.21
Pres [hPa] of the Lifted Condensation Level: 903.35
   Equivalent potential temp [K] of the LCL: 351.14
     Mean mixed layer potential temperature: 301.86
              Mean mixed layer mixing ratio: 16.67
              1000 hPa to 500 hPa thickness: 5795.00
Precipitable water [mm] for entire sounding: 52.60
